Tibiocalcaneal Arthrodesis for Ankle Arthropathy Using Patient-Matched Modular 3D-Printed Porous Titanium Implants and Locked Intramedullary Fixation
DOI:
https://doi.org/10.56929/jseaortho-2026-0338Keywords:
Ankle arthropathy, tibiocalcaneal arthrodesis, patient-matched modular, 3D-printed implant, limb salvageAbstract

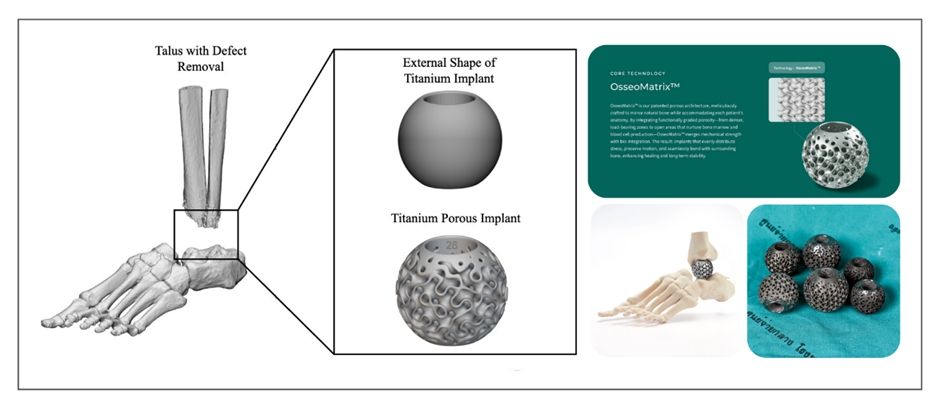

Purpose: To evaluate the clinical and radiographic outcomes of tibiocalcaneal arthrodesis using patient-matched modular 3D-printed porous titanium implants combined with locked intramedullary nails for advanced ankle arthropathy with substantial bone loss.
Methods: This prospective cohort study included seven consecutive patients who underwent tibiocalcaneal arthrodesis using patient-matched modular 3D-printed porous titanium implants between January 2024 and December 2025. Functional outcomes were assessed using the Foot and Ankle Ability Measure (FAAM). Osseous union, alignment, and implant position were evaluated using radiographs and computed tomography at 1 year.
Results: The mean patient age was 58.4 years (71.4% female). Mean follow-up was 12 months. Median reconstruction volume was 9,862 mm³ (interquartile range, 4,049–11,118 mm³). The median FAAM score improved from 60 preoperatively to 80 at 1 year (p = 0.018). At 1 year, complete osseous union was observed in two patients (28.6%), partial union in four (57.1%), and nonunion in one (14.3%). Complications occurred in three patients (42.9%): persistent nonunion with mechanical instability (n = 1), transient instability requiring supplemental fixation (n = 1), and superficial wound maceration that resolved with conservative care (n = 1). No major complications were reported.
Conclusions: Patient-matched modular 3D-printed porous titanium implants combined with locked intramedullary nails may offer a limb-salvage option for advanced ankle arthropathy with massive bone loss. However, the high complication rate (42.9%) and low complete union rate (28.6%) at 1 year highlight the limitations of this approach. Long-term postoperative mechanical protection and regular monitoring are essential to prevent late structural failure.
Metrics
References
Steele JR, Kadakia RJ, Cunningham DJ, et al. Comparison of 3D printed spherical implants versus femoral head allografts for tibiotalocalcaneal arthrodesis. J Foot Ankle Surg 2020;59:1167-70.
So E, Mandas VH, Hlad L. Large osseous defect reconstruction using a custom three-dimensional printed titanium truss implant. J Foot Ankle Surg 2018;57:196-204.
Parry E, Catanzariti AR. Use of three-dimensional titanium trusses for arthrodesis procedures in foot and ankle surgery: a retrospective case series. J Foot Ankle Surg 2021;60:824-33.
Abar B, Kwon N, Allen NB, et al. Outcomes of surgical reconstruction using custom 3D-printed porous titanium implants for critical-sized bone defects of the foot and ankle. Foot Ankle Int 2022;43:750-61.
Strydom A, Saragas NP, Ferrao PN. The use of a 3D printed titanium implant for arthrodesis in the management of large osseous defects in the ankle. Foot Ankle Surg 2023;29:576-83.
Pan T, Zavras AG, Olson SN, et al. The 3D-printed custom prosthesis for treatment of traumatic tibial plafond and midfoot fracture nonunion: a case report. J Orthop Rep 2025;4:100464.
Arunakul M, Arunakul P, Suesiritumrong C, et al. Validity and reliability of Thai version of the Foot and Ankle Ability Measure (FAAM) subjective form. J Med Assoc Thai 2015;98:561-7.
Willems A, Houkes CM, Bierma-Zeinstra SMA, et al. How to assess consolidation after foot and ankle arthrodesis with computed tomography: a systematic review. Eur J Radiol 2022;156:110511.
Kim MS, Mann T, Kelly C, et al. Mid-term outcomes of lower limb salvage with 3D-printed ankle cages. Foot Ankle Surg Tech Rep Cases 2024;4:100413.
Jain A, Lerch R, Tolin J, et al. Complicated problems solved with the use of 3D printing: A case series. Foot Ankle Surg Tech Rep Cases 2025;5:100490.
Prompapat P, Aingfa P, Pintokitkasem N, et al. Porous-based talus reconstruction prosthesis and associated method. United States patent application US 2025/0339282 A1. 2025 Nov 6.
Araujo-Monsalvo VM, Toledo-Romo MF, Rodríguez-Castro GA, et al. Comparative study of two retrograde locked intramedullary nail designs for ankle arthrodesis: a finite element analysis. Proc Inst Mech Eng H 2024;238:198-206.
Marin E, Lanzutti A. Biomedical applications of titanium alloys: a comprehensive review. Materials (Basel) 2023;17:114.
Promoppatum P, Chayasombat B, Soe A, et al. In-situ modification of thermal, microstructural, and mechanical responses by altering scan lengths in laser powder bed fusion additive manufacturing of Ti-6Al-4V. Opt Laser Technol 2023;164:109525.
Trithepchunlayakoon S, Soe AN, Sombatmai A, et al. The critical role of optimized energy density in controlling void morphology and enhancing mechanical properties of L-PBF Ti-6Al-4V ELI alloy. PLoS One 2025;20:e0325276.
Sung W, Greenhagen RM, Hobizal KB, et al. Technical guide: transfibular ankle arthrodesis with fibular-onlay strut graft. J Foot Ankle Surg 2010;49:566-70.
Smith CJ, Skinner WC, Bettin CC. Tibiotalocalcaneal arthrodesis using hybrid plate-nail constructs: a novel technique for treatment of unstable ankle and hindfoot deformities. J Orthop Trauma 2023;37(8 Suppl 1):S11-2.
Grau D, Matamala A, Bernaus M, et al. A 3D-printed model of a titanium custom-made talus for the treatment of a chronic infection of the ankle. J Foot Ankle Surg 2022;61:212-7.
Mehlhorn AT, Illgner U, Lemperle S, et al. Histopathological assessment of a two-stage reconstructive procedure of the infected Charcot foot. Arch Orthop Trauma Surg 2023;143:1223-30.
Powers NS, Brandao RA, St John JM, et al. Outcomes and management of infected intramedullary nails after tibiotalocalcaneal arthrodesis in limb salvage: a retrospective case series. J Foot Ankle Surg 2020;59:431-35.
Simoni G, Maccauro G, Fenga D, et al. Arthrodesis of the ankle joint in septic osteoarthritis: six years long term outcomes in authors' personal experience. Eur Rev Med Pharmacol Sci 2019;23(2 Suppl):139-44.
Kavarthapu V, Haldar A. Reconstruction of unstable ankle Charcot deformity using a 3D-printed titanium porous block and hindfoot nail: a case report. Foot (Edinb) 2024;60:102116.
Hill Z, Regal A, Roby M, et al. Tibiotalocalcaneal arthrodesis with 3D-titanium implants for management of critical-sized osseous defects of the hindfoot and ankle: a systematic review and meta-analysis. Foot Ankle Spec. Published online February 22, 2026. https://doi.org/doi:10.1177/19386400261420376
Zhang T, Wei Q, Zhou H, et al. Three-dimensional-printed individualized porous implants: A new "implant-bone" interface fusion concept for large bone defect treatment. Bioact Mater 2021;6:3659-70.
Wong KW, Huang SF, Yeh SHH, et al. Biomechanical design considerations of a 3D-printed tibiotalocalcaneal nail for ankle joint fusion. 3D Print Med 2025;11:21.
Shenoy DA, Parsons KE, LoPolito AG, et al. Radiographic osseointegration appears similar across synthetic, allograft, and mixed grafts in custom 3D-printed cage reconstruction of the foot and ankle: a short report. Foot Ankle Int 2026;47:493-8.
Canintika AF, Dilogo IH. Teriparatide for treating delayed union and nonunion: a systematic review. J Clin Orthop Trauma 2020;11(Suppl 1):S107-12.
Puvvada CS, Soomro FH, Osman HA, et al. Efficacy and safety of teriparatide in improving fracture healing and callus formation: a systematic review. Cureus 2023;15:e37478.
Lee HS, Park JH, Suh DH, et al. Effects of teriparatide on fusion rates in patients undergoing complex foot and ankle arthrodesis. Foot Ankle Surg 2020;26:766-70.
Tamai K, Takamatsu K, Kazuki K. Successful treatment of nonunion with teriparatide after failed ankle arthrodesis for Charcot arthropathy. Osteoporos Int 2013;24:2729-32.
Adams S, Dekker T, Steele J, et al. The use of patient-specific 3D printed titanium implants for complex foot and ankle limb salvage, deformity correction, and arthrodesis procedures. Foot Ankle Orthop 2017;2(3).
